BrickFix Resin-Resin Remedial Wall Ties

BrickFix Resin-Resin Remedial Wall Ties are designed to be installed into existing cavity walls – e.g. to replace corroded wall ties or where wall ties have been incorrectly installed. They are fixed into place using BrickFix Wall Tie Resin.

BrickFix Resin-Resin Remedial Wall Ties are manufactured from stainless steel and are available in various lengths to accommodate different cavity widths. The helical design provides multiple drip points and rotational flexibility that accommodates normal building movement.

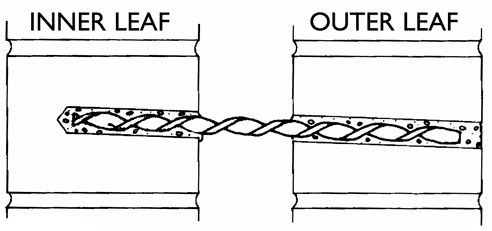

The diagram below shows how BrickFix Resin-Resin wall ties are installed into a cavity wall (showing a slight upward slant):

Resin wall tie in cavity wall

All BrickFix wall ties should be installed in accordance with the advice given in BRE Digest 329 and BRE Digest 401. If you would like to discuss a wall tie replacement project, please contact our technical department on 01403 210204 or submit an enquiry.

BrickFix Resin to Resin Remedial Wall Tie Datasheet
