Floor Refurbishment at Isle of Man School
Background
Dampness affecting the floor of a classroom of a school in the Isle of Man had caused the existing wooden floor finish to warp and lift. As well as being unsightly, this caused a potential health and safety risk.
The Floor Refurbishment
Flooring specialists, British Flooring Contract Services Ltd., suggested a refurbishment solution involving the use of Oldroyd Xs slimline cavity drainage membrane. Oldroyd Xs is a BBA-approved high specification damp-proof membrane incorporating a pattern of “grooves” that allow moisture to move behind the membrane. To minimise environmental impact, Oldroyd Xs contains a minimum of 56% recycled polypropylene. This is achieved without any loss of product performance by utilising Oldroyd’s multi-layer production technology.
Once the original wooden flooring finish had been removed, Oldroyd Xs membrane was laid over the whole floor area. All joints were sealed using Oldroyd sealing tapes. Two layers of marine ply were then laid directly onto the Oldroyd Xs membrane. Poly Safety Floor tiles were then applied to the marine ply using flooring adhesive.
-

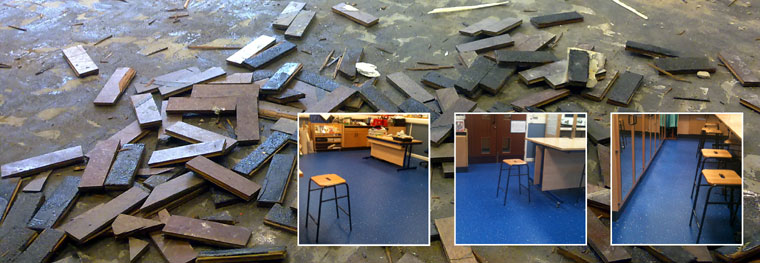

The damp-affected floor during removal of the damaged wooden floor finish.
-
Oldroyd Xs membrane being applied to the damp-affected floor.
-
Layer build-up showing:
1) Damp-affected floor
2) Oldroyd Xs
3) Marine plywood. -
Brushing marine plywood before application of adhesive.
-
Applying flooring adhesive.
-
Finished classroom floor with Poly Safety Floor tiles laid.
